Standardized Automation Products
Highly integrated core components for rapid system deployment
Product Category
Aluminum Profile Series
◈ Standardized components & reliable connection technology
◈ Seamless integration across all system modules
◈ Robust construction & secure fastening for maximum safety
◈ Global supply chain ensuring rapid delivery
◈ Superior cost-benefit ratio
Servo Electric Cylinder Series
◈ Integrated high-sensitivity force sensors (internal/external options)
◈ High-resolution encoders supporting ±0.01 mm closed-loop control
◈ Real-time force/stroke compensation algorithms for stable output
◈ Seamless adaptability to leading servo motor brands
Linear Slide Series
◈ High repeatability of 0.003 mm
◈ Comprehensive load spectrum: 5 kg to 200 kg
◈ Versatile drive options: compatible with servo & stepper motors
◈ Open interface design for rapid automation system integration
Stoppers
◈ Modular architecture supports both pneumatic and electric actuation for flexible system integration
◈ Integrated high-performance damping ensures smooth, vibration-free stopping to protect sensitive workpieces
◈ Engineered for robust flow control and precise singulation across diverse automated transfer lines
Sensor Protection Housing
◈ Precision Guarding & Industrial Durability
◈ Provide comprehensive and reliable protection for various sensor models in demanding environments
Torque Arm
◈ Ergonomic torque arms eliminate reaction force to reduce operator fatigue while ensuring consistent tool orientation for high-precision assembly

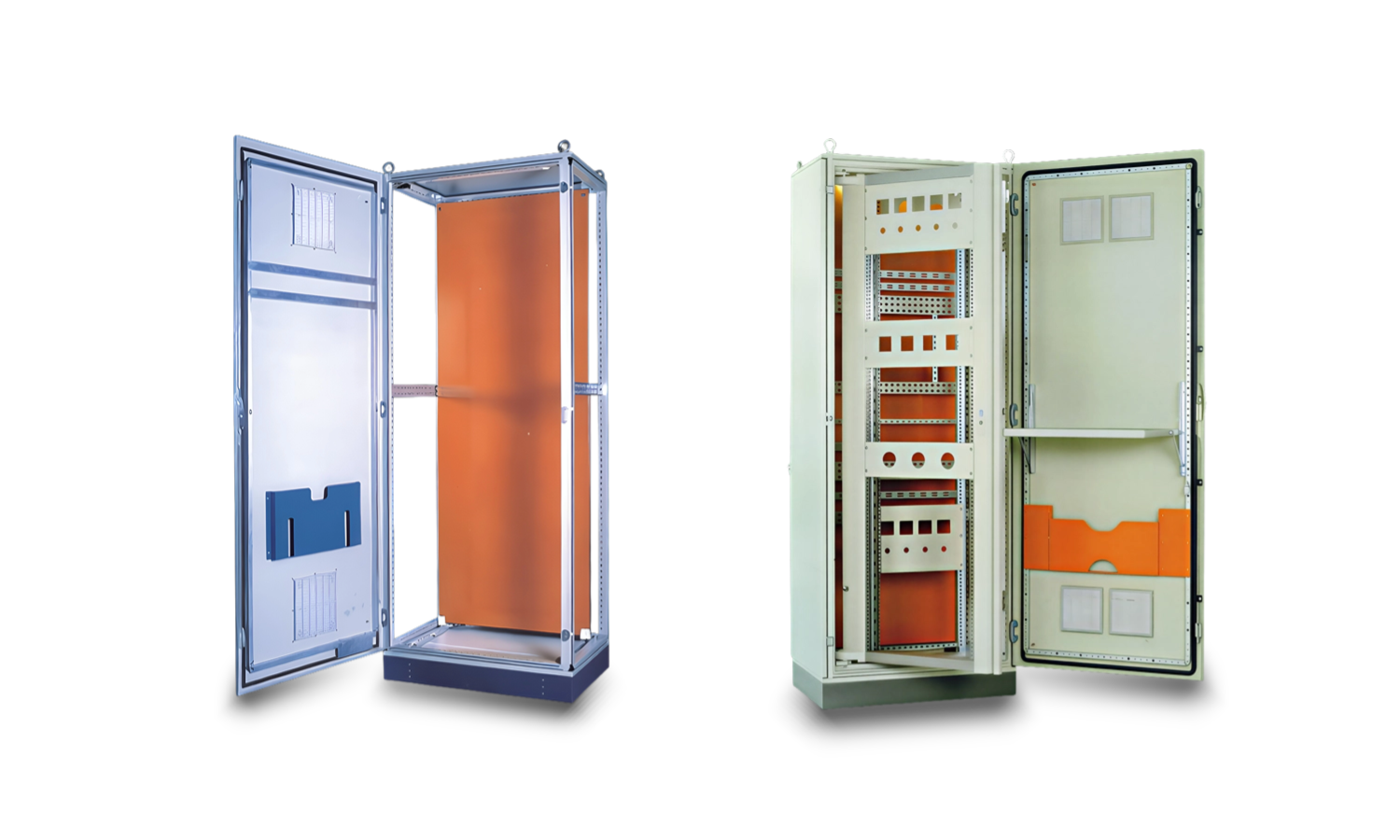

Industrial Control Cabinets & Turnkey System Integration
◈ Complete Enclosure Matrix
Wall-Mounted Boxes, Luxury Vertical Enclosures, Universal Frame Cabinets
◈ Ergonomic Factory Desks
Specialized Consoles, Touch-Screen Tables, Cantilever
Systems
◈ Certified Heavy-Duty Protection
IP54/IP55/IP56 certified for absolute dust and water sealing
◈ Thermal Control Solutions
Pre-cut integration for ACs and ventilation filter fans
◈ Full Contract OEM/ODM
Providing turnkey engineering: fabrication, assembly, and
on-site debugging

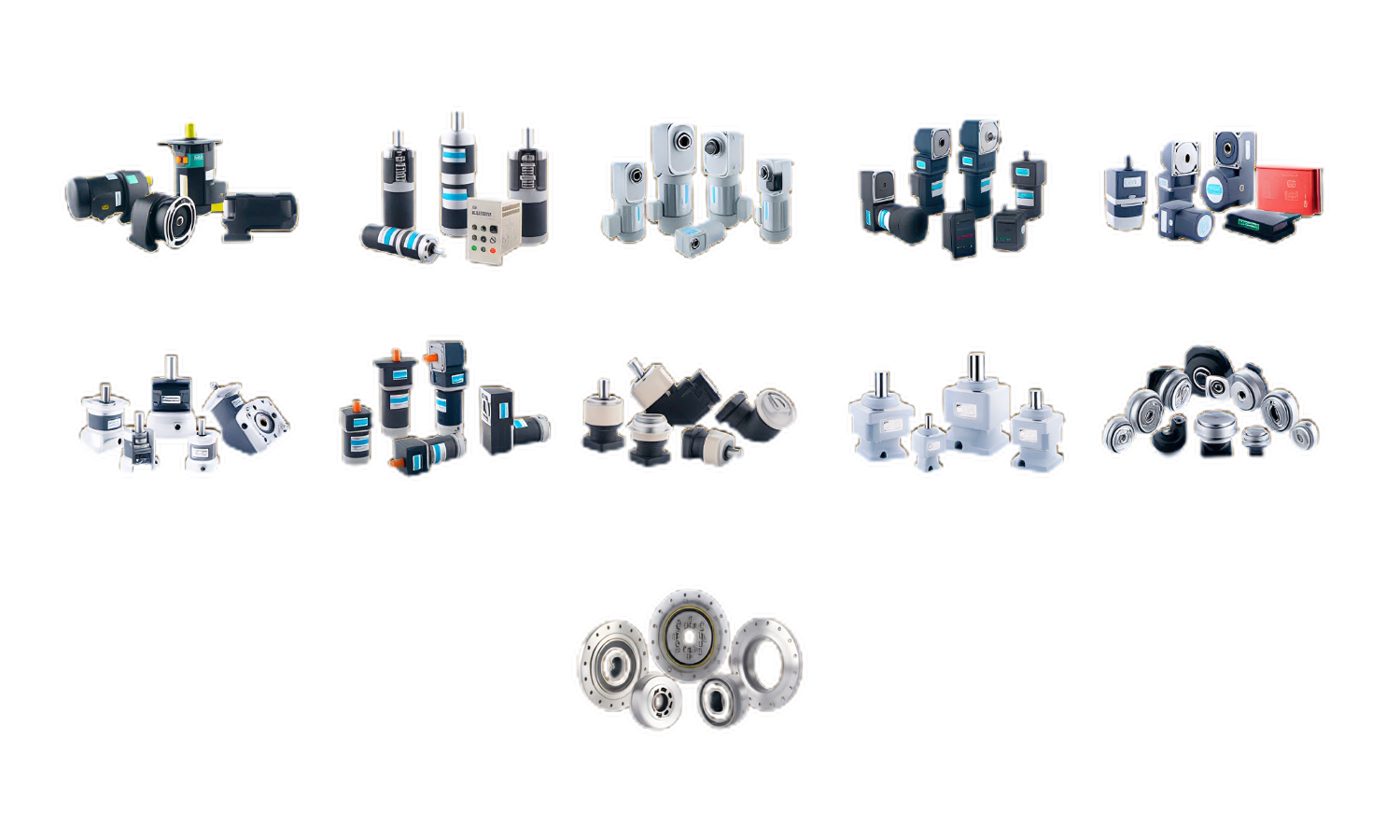

Smart Drive Solutions
◈ Hypoid Gear Motors: Space-saving design. 15W–2200W, ratio 5–240k
◈ Small AC Gear Motors: Vertical/horizontal setups. 100W–3700W, ratio 1:3–1:750
◈ Brushless DC Gear Motors: Compact size, wide speed range. 10W–400W with drivers
◈ DC Gear Motors: High starting torque. 6W–300W, 12V–220V voltage options
◈ Precision Planetary Gearboxes: Matches servo motors. Efficiency ≥ 96%, backlash ≤ 3 arc-min
◈ RV & Harmonic Reducers: Ultra-high rigidity for robot arms. Backlash ≤ 1 arc-min

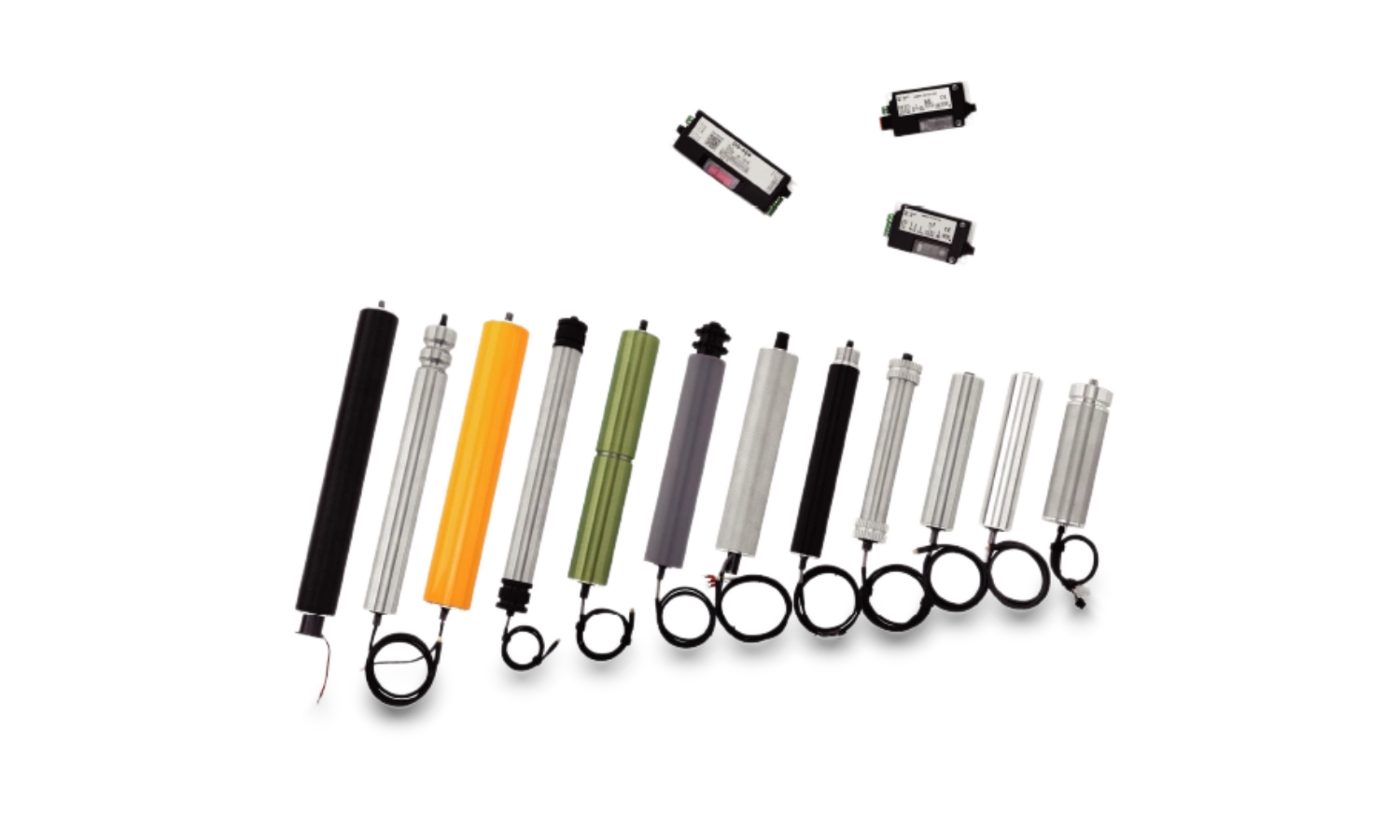

Intelligent Drum Motors / Power Rollers
◈ Space-Saving Integration
Eliminates external motors, gearboxes, and bulky drive chains
◈ Versatile Configurations
Includes AC, Low/High-Voltage DC Brushless, and Servo-Electric Drums
◈ Harsh Environment Ready
IP65 waterproof rating, customizable tube lengths, and optional mechanical brakes

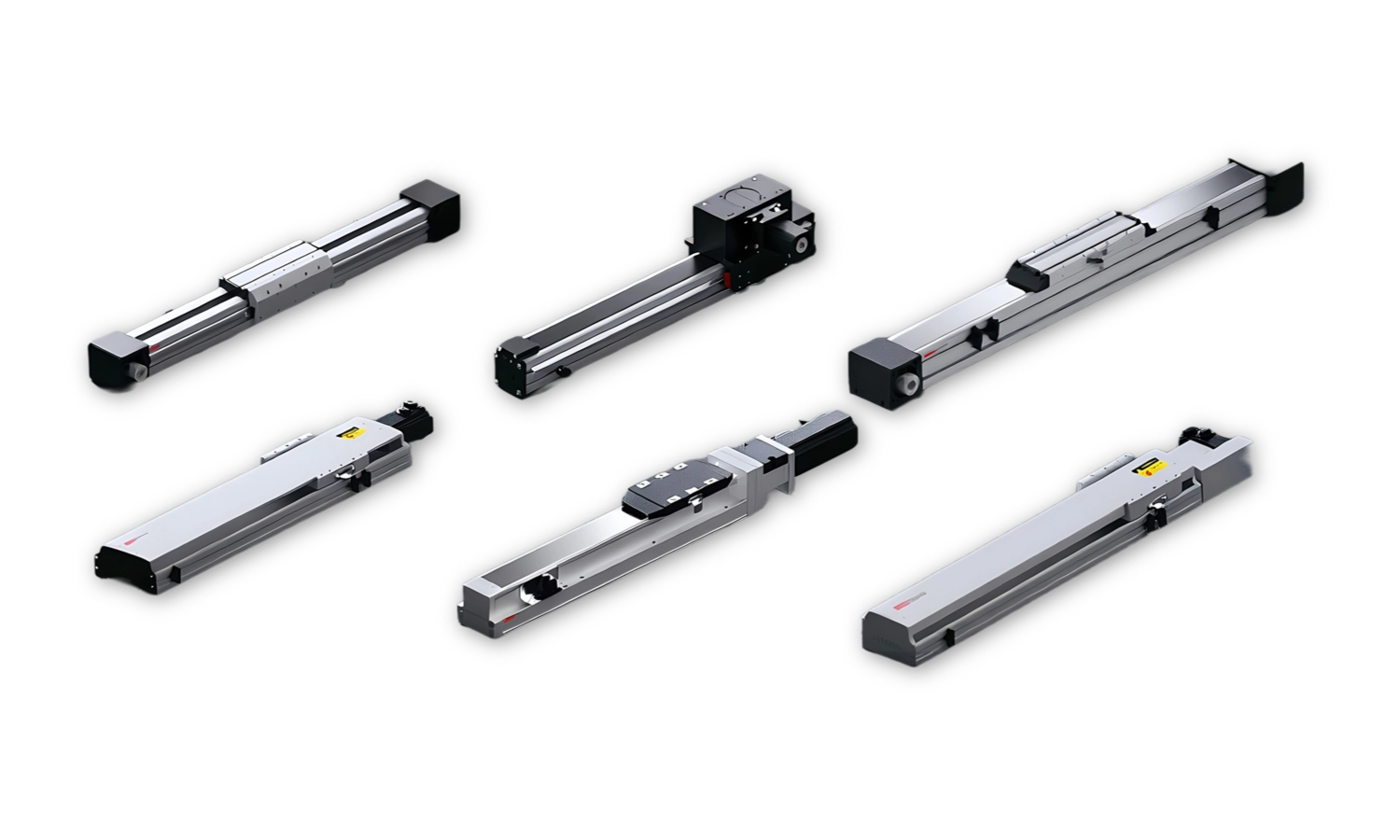

Precision Linear Modules & Motors
◈ Micro-Level Accuracy
Repeatability up to ±0.005mm for precise tracking
◈ Diverse Driving Formats
Embedded Guide Rail, Ball Screw, Synchronous Belt, and Iron-Core Linear Motors
◈ Optimized Dynamics
Fixed-motor Z-axis eliminates moving end-loads for maximum response

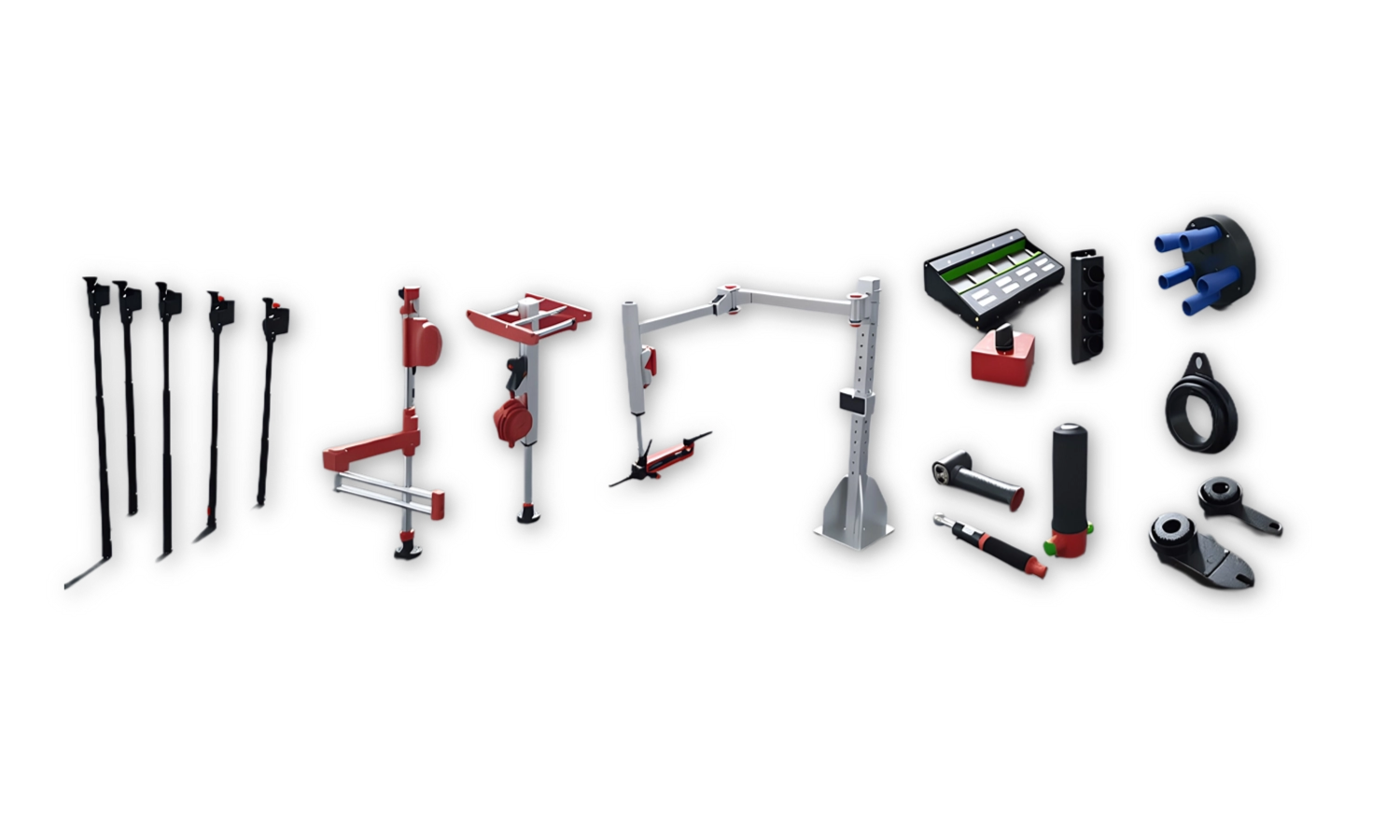

Advanced Assembly & Tightening Tools
◈ Zero-Fatigue Operation
High-strength Carbon Fiber and Articulated Torque Arms absorb tool reaction forces
◈ Smart Automation Modules
Integrated Pre-tightening Modules, Handy Lifts, and Geared Front Attachment Tools
