Compact Press TSPL Series

Industries

Automotive

Aerospace

New Energy & Energy Storage

Pharmaceutical

Semiconductor

Electronics & Electrical

Heavy Machinery

Railway Locomotives

Features

Robust Structure, Long-lasting Durability

· Modular and compact structural design.
· Enhanced mechanical specifications ensure stable high-performance output.
· Adapted for high-frequency, high-intensity continuous operation.

Smart Production Support

· Real-time analysis and evaluation of production processes.
· Error-proofing mechanisms to optimize workflows.
· Supports multi-dimensional data traceability and analysis.

Comprehensive Data Traceability

· Real-time production process monitoring with feedback.
· Instant data upload for seamless integration with production management systems.

Proprietary Software System

· Clear and intuitive interface.
· Simple parameter configuration for quick mastery and effortless use.

Exceptional Precision Control

· Displacement repeatability accuracy: 0.01mm
· External sensors enable ultra-high precision at 2μm level
· Force sensor accuracy: 0.5% FS；System accuracy: 1% FS
· EtherCAT protocol-based system response time: 250μs

Robust Expansion Capabilities

· Supports external high-precision displacement and force sensors.
· Flexible expansion of I/O interfaces.
· Enables interconnection of multiple presses to meet complex production line demands.

Specifications

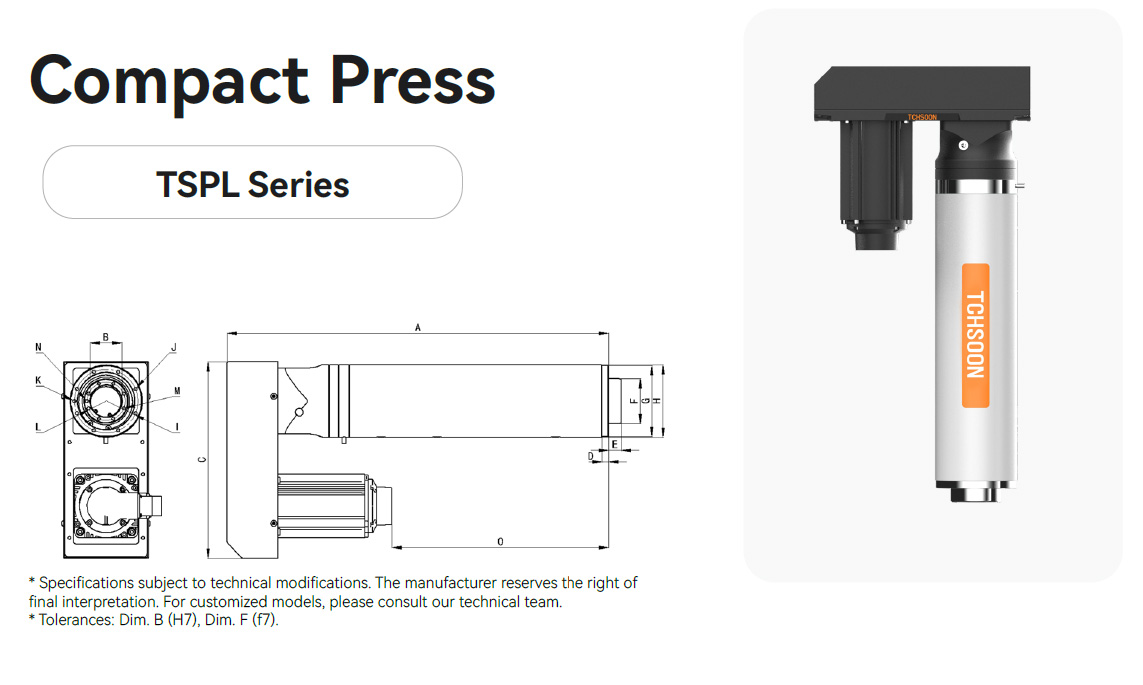

Model No.	Stroke	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O
TSPL.010.200.250	200	630	50	303	14.5	20	75	112	115	100	8*M6-23	Φ5	60	8*M6-12	Φ5	377
TSPL.010.400.250	400	830	50	303	14.5	20	75	112	115	100	8*M6-23	Φ5	60	8*M6-12	Φ5	577
TSPL.015.200.250	200	632	50	303	14.5	20	75	112	115	100	8*M6-23	Φ5	60	8*M6-12	Φ5	248
TSPL.015.400.250	400	832	50	303	14.5	20	75	112	115	100	8*M6-23	Φ5	60	8*M6-12	Φ5	448
TSPL.030.200.170	200	708	60	360	15	31	85	132	135	120	8*M8-23	ф6	70	8*M6-12	Φ6	319
TSPL.030.400.170	400	908	60	560	15	31	85	132	135	120	8*M8-23	ф6	70	8*M6-12	Φ6	519
TSPL.060.200.165	200	790	75	378	15	50	110	154	160	141	12*M10-23	Φ8	95	8*M8-16	Φ6	258
TSPL.060.400.165	400	990	75	378	15	50	110	154	160	141	12*M10-23	Φ8	95	8*M8-16	Φ6	458
TSPL.100.200.100	200	1091	105	480	14	50	145	196	200	176	8*M12-30	Φ10	125	8*M12-24	Φ10	448
TSPL.100.400.100	400	1291	105	480	14	50	145	196	200	176	8*M12-30	Φ10	125	8*M12-24	Φ10	648
TSPL.150.200.064	200	1156	110	483	14	50	145	216	200	188	8*M14-28	Φ10	125	10*M12-24	Φ12	487
TSPL.150.400.064	400	1356	110	483	14	50	145	216	200	188	8*M14-28	Φ10	125	10*M12-24	Φ12	687
TSPL.200.200.050	200	1166	110	483	14	50	145	216	200	188	8*M14-28	Φ10	125	10*M12-24	Φ12	528
TSPL.200.400.050	400	1366	110	483	14	50	145	216	200	188	8*M14-28	Φ10	125	10*M12-24	Φ12	728
TSPL.300.200.035	200	1321	150	580	22.5	110	180	265	270	235	8*M16-42	Φ12	150	8*M16-38	Φ12	605
TSPL.300.400.035	400	1521	150	580	22.5	110	180	265	270	235	8*M16-42	Φ12	150	8*M16-38	Φ12	805
